    Summit® 15" 68 lb. Panel Ready Built-in Undercounter Ice Maker


    Model #:

    BIM62ADAPNR

    Model #: BIM62ADAPNR
    1785717
    Summit
    $2,870.00

    At a Glance

    Product Dimensions 32"h x 14.75"w x 22.75"d

    15" wide ADA height clear gourmet clear icemaker with automatic defrost, internal pump, complete stainless steel exterior, and a panel-ready door lets you effortlessly blend the unit into your own cabinetry. It is also approved for use in both commercial and residential settings.*CUSTOM PANEL & HANDLE SOLD SEPARATELY*Read More

    $2,870.00

    Get to know this product.

    Product Overview

    Product Overview
    15" Wide Clear Icemaker

    Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings.

    Custom Style

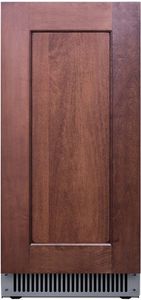

    Panel-ready door trim lets you seamlessly integrate this unit into your kitchen or bar.

    Easy Panel Installation with Included 2-Piece Bracket Kit

    Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 28 1/4" H x 14 5/8" W)

    Fully Articulating Door Hinge

    European style hinge design ensures a flush fit and allows for a smoother opening.

    Versatile Design

    Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of a fully finished stainless steel door.

    ADA-Compliant

    32" height allows installation under lower ADA-compliant counters.

    Height Adjustable

    Leveling legs can be extended up to 2 1/4", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34 1/4" if used under higher cabinets.

    Built-In Pump

    Internal pump allows more flexibility in placing the unit.

    Useful Documents
    Specifications

    General Specs

    Depth (in.)22.75
    Height (in.)32
    Ice Storage Capacity (lbs.)68
    ColorCustom
    Installation TypeBuilt-In
    Door ColorCustom
    Production Rate Ice (lb./day)68
    Commercial Use ApprovedYes
    Overall Height (in.)32
    Garage ReadyNo
    Color/Finish NameCustom
    Width (in.)14.75
    Manufacturer Warranty1 Year Parts & Labor / 5 Year Compressor
    Outdoor ApprovedNo
    ENERGY STAR CertifiedNo
    Defrost SystemAutomatic
    Appliance Fit Width (in.)15
    Smart CompatibleNo
    Wifi CapableNo
    Door Swing OptionRight Hinge
    Locking DoorNo
    ADA CompliantYes
    Voltage115
    Frequency60
    Amp6
    Ice TypeTop-Hat
    Door Panel TypePanel

    General

    CabinetStainless Steel
    ReversibleYes
    Height Adjustable Yes
    Drain Required Yes
    Level Legs4
